Output Power: 1000W、1600W、2500W、3500W、5000W、10KW、15KW
Output Power: 1000W、1600W、2500W、3500W、5000W、10KW、15KW
Output Power: 1000W、1600W、2500W、3500W、5000W、10KW、15KW
Output Power: 1000W、1600W、2500W、3500W、5000W、10KW、15KW

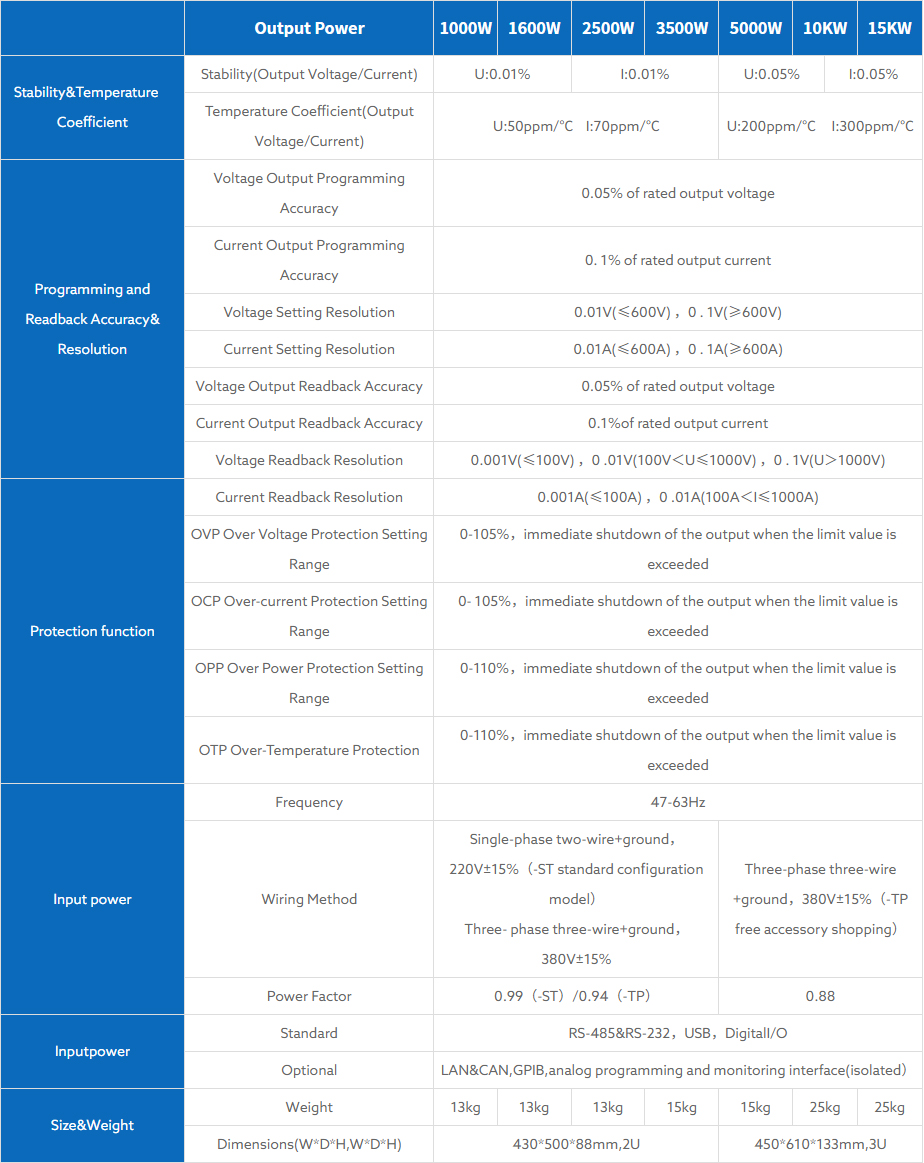

| Output Power | 1000W | 1600W | 2500W | 3500W | 5000W | 10KW | 15KW | ||||
| Stability&Temperature Coefficient | Stability(Output Voltage/Current) | U:0.01% | I:0.01% | U:0.05% | I:0.05% | ||||||
| Temperature Coefficient(Output Voltage/Current) | U:50ppm/℃ I:70ppm/℃ | U:200ppm/℃ I:300ppm/℃ | |||||||||
| Programming and Readback Accuracy& Resolution | Voltage Output Programming Accuracy | 0.05% of rated output voltage | |||||||||
| Current Output Programming Accuracy | 0. 1% of rated output current | ||||||||||
| Voltage Setting Resolution | 0.01V(≤600V) ，0 . 1V(≥600V) | ||||||||||
| Current Setting Resolution | 0.01A(≤600A) ，0 . 1A(≥600A) | ||||||||||
| Voltage Output Readback Accuracy | 0.05% of rated output voltage | ||||||||||
| Current Output Readback Accuracy | 0.1%of rated output current | ||||||||||
| Voltage Readback Resolution | 0.001V(≤100V) ，0 .01V(100V＜U≤1000V) ，0 . 1V(U＞1000V) | ||||||||||
| Protection function | Current Readback Resolution | 0.001A(≤100A) ，0 .01A(100A＜I≤1000A) | |||||||||
| OVP Over Voltage Protection Setting Range | 0-105%，immediate shutdown of the output when the limit value is exceeded | ||||||||||
| OCP Over-current Protection Setting Range | 0- 105%，immediate shutdown of the output when the limit value is exceeded | ||||||||||
| OPP Over Power Protection Setting Range | 0-110%，immediate shutdown of the output when the limit value is exceeded | ||||||||||
| OTP Over-Temperature Protection | 0-110%，immediate shutdown of the output when the limit value is exceeded | ||||||||||
| Input power | Frequency | 47-63Hz | |||||||||
| Wiring Method | Single-phase two-wire+ground，220V±15%（-ST standard configuration model） Three- phase three-wire+ground，380V±15% | Three-phase three-wire +ground，380V±15%（-TP free accessory shopping） | |||||||||
| Power Factor | 0.99（-ST）/0.94（-TP） | 0.88 | |||||||||
| Inputpower | Standard | RS-485&RS-232，USB，DigitalI/O | |||||||||
| Optional | LAN&CAN,GPIB,analog programming and monitoring interface(isolated） | ||||||||||
| Size&Weight | Weight | 13kg | 13kg | 13kg | 15kg | 15kg | 25kg | 25kg | |||
| Dimensions(W*D*H,W*D*H) | 430*500*88mm,2U | 450*610*133mm,3U | |||||||||
